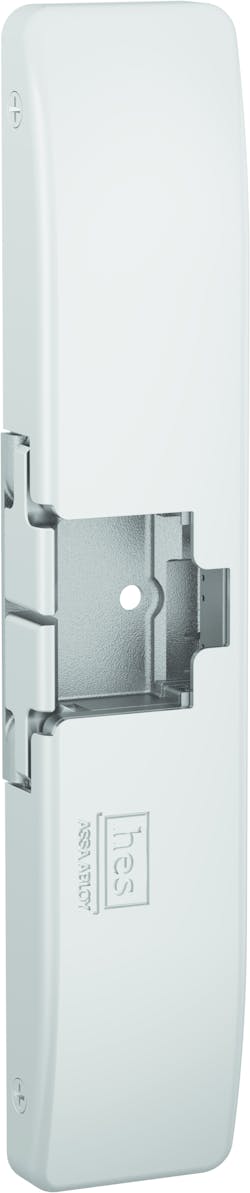

HES 9700 Series Electric Strike

Nov. 18, 2015
Stylish, windstorm-rated and fire-rated square bolt solution

The 9700 Series electric strike from HES, an ASSA ABLOY company, is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBoltTM and Yale SquareBolt® exit devices.  All components are completely encased within its ¾” thick stainless steel housing, so no cutting on the frame is required for installation.  If is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.

The 9700 series is designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.  This unique electric strike also complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

Specifications

  • UL listed to ANSI 250.13 Severe Windstorm
  • CAN4-S104 (ULC-S104), NFPA-252 and ASTM-E152 fire door conformant
  • Florida Building Code Approved (FL#14307)
  • California Fire Marshall listed
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 10C fire-rated, 3 hour (fail secure only)
  • UL 294 (6th Edition) listed
  • ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
  • RoHS compliant
