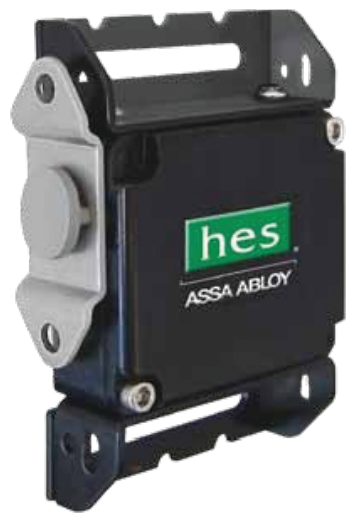

HES 660 electro-mechanical lock

June 6, 2012
surface-mounted, multi-purpose locking solution

The 660 electro-mechanical lock is a surface-mounted, electric multi-purpose lock, perfect for drawers and cabinets, operating on either 12 or 24VDC with over 1,000 lbs. of holding force.

Electrical

  • .24 Amps @ 12VDC continuous duty
  • .12 Amps @ 24VDC continuous duty
  • .70 Amps @ 12VDC (pre-load option)
  • .35 Amps @ 24VDC (pre-load option)

Standard Features

  • Static strength 1,000 lbs.
  • Dynamic strength over 100 ft-lbs.
  • Endurance 1,000,000 cycles
  • Available in either 12 or 24VDC
  • All metal construction
  • Adjustable mounting brackets with final lockdown feature
  • 6 foot cable lead
  • Patented deisgn
  • 3 year limited warranty

Optional Features

  • LBSM - "Locked State" Monitoring
  • Pre-load version
