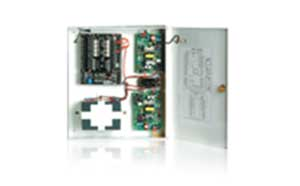

The iTDC-SR is IDTECK’s reliable, field-tested intelligent access control panel that is capable of accommodating up to 4 smart card readers. Advanced access control features such as cardholder management, visitor management, alarm monitoring, SMS alarm feature and simple time and attendance management are available when it is used with its designated software, STARWATCH iTDC PRO series. This multi-functional access control system is suitable for medium sized buildings and business environments as it guarantees high security level and stability.
iTDC-SR is packed with many useful functions. Some of the functions included in the iTDC are Anti-Passback, holiday schedule, individual door opening time setting, duress mode function and more. iTDC-SR is compatible with any of IDTECK’s SR Series readers.
iTDC-SR is capable of storing up to 50,000 card holders and 29,500 event buffers. RS232/422 communications are available and TCP/IP communication can be added with external TCP/IP converter. Optional LCD display and keypad are connectable to control for standalone operation.
Features
• Contactless Smart Card 2~4 Door Access Control Panel
• Dynamic control of memory up to 20,000 card holders / 29,500 events
Optional ; Card holders : 30,000/40,000/50,000 Events : 14,000/8,000/3,000
• Standalone or RS232/RS422/RS485 (Max. 256ch) Network communication
• Reader Interface
125KHz : 26 bit Wiegand, 4/8 bit burst for PIN
• TCP/IP Communication (Optional TCP/IP LAN module required)
• Isolated 7 inputs and 7 outputs including 4 relays (3 TTL outputs)
• 15 time schedules and 10 holiday schedules
• Anti-passback function
• Optional LCD display and keypad connectable to the control board for standalone operation, manual setting.
