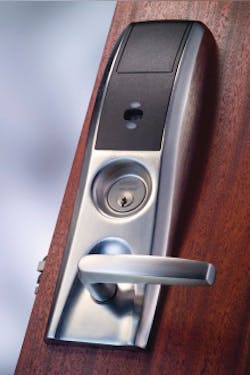

BERLIN, CT - Corbin Russwin, an ASSA ABLOY Group brand, introduces the Access 800 IP1 intelligent Power over Ethernet (PoE) access control locking solution.
The Access 800 IP1 integrates ANSI/BHMA Grade 1 Corbin Russwin hardware with a contactless reader, door status monitoring, and controller into a single device, making it an ideal solution for corporate campuses, schools, healthcare facilities and other buildings looking for a cost-effective, easy-to-install, and sustainable solution for bringing online access control to more doors.
Corbin Russwin’s Access 800 IP1 PoE lock uses a single Ethernet cable for both power and data, eliminating the need for any additional power supply or electrical wiring. It uses existing IEEE 802.3af PoE infrastructure to streamline the installation process, reduce costs, enable real-time communication, and minimize power consumption. With a maximum power consumption of 7 watts per activation at each lock, the IP1 uses 50% less power than traditional access control solutions using PoE. It also uses significantly less power in standby than traditional access control.
Using the Local Area Network and HID 125 kHz proximity or 13.56 MHz iCLASS credentials, the Access 800 IP1 offers complete access control features such as built-in door status monitoring and real-time configurable alarm notifications. Local decision-making ensures operation regardless of network status.
The Access 800 IP1 PoE lock is available in cylindrical lock, mortise lock, and exit device configurations. The lock supports 2,400 users and a 10,000-event audit trail, if running autonomously. It is also available with a keypad option for two-factor authentication, and a variety of finishes and Museo decorative levers for a consistent design aesthetic.
