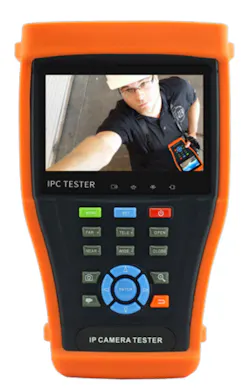

The SecurityTronix IP Buddy+HDoC MINI is a 4.3 inch IP camera tester with an 800 x 400 capacitive touch screen designed for the installation of analog, IP, HD-TVI and HD-CVI cameras. With an ONVIF PTZ controller this meter supports more than 40 customized IP camera protocols, mobile apps to view IP camera images and contains built-in WiFi to receive network images and data.
The FTP Server, Static IP address, DHCP, simultaneously test different segments of IP cameras along with network bandwidth testing. The PoE 24W power supply can power IP cameras and test PoE voltage while the DC12V2A power output will power most analog cameras. The HDMI signal output supports 1080p.
Additional features include USB 5V 2A power output to mobile phones, PoE port finder, link monitoring, IP camera ping testing, IP address scan and a BNC input & output. Both IP and analog images can be zoomed in up to four times. The meter supports snapshot, video recording and playback. It has a built in 4G SD card, NTSC/PAL auto-selection, video signal measurement, analog PTZ control, preset settings, UTP cable testing, PTZ data analysis, RS485 communication address scan and audio input testing. The 7.4V DC 5000mAh lithium polymer battery can power the unit for up to 16 hours after charging for seven hours.
