Jamison Thin RFID Portals

    May 16, 2014
    Related To:
    Jamison Rfid Portals 11466158

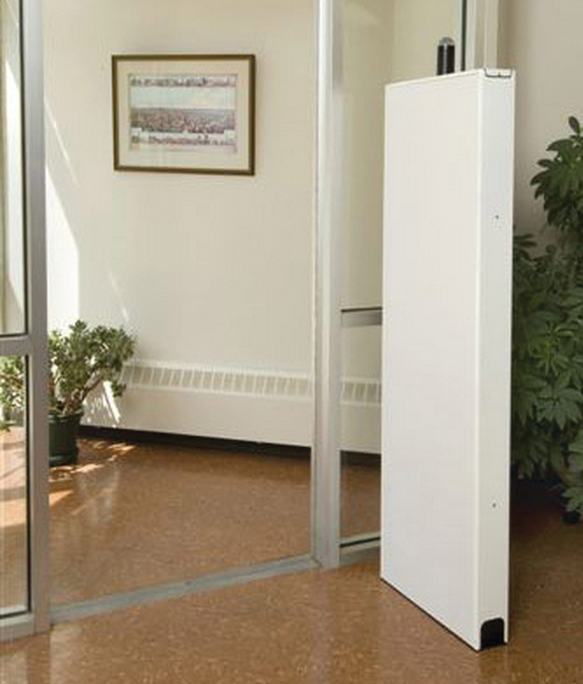

    The Jamison Thin RFID Portal series offers space-saving features in an aesthetically-pleasing unit suitable for light warehouse, retail, data center, and office environments. The stands come in 60-inch and 78-inch models, offer a variety of mounting configurations, and can be used as free-standing, wall-mount, or can mount to the floor against a wall.

    Features:

    • Small footprint
    • One-sided or two-sided units available
    • Side trims and top available in colors
    • Optional light dome and motion sensor
    • ABS covers available in white or black
    • Power/IP connectors can be placed at the top or bottom on either side of the unit

    Specifications:

    • Standard Construction: 12-gauge steel frame with 18-gauge steel side trim & top
    • Standard Finish: Powder-coated in colors or chrome, optional finishes and Stainless Steel
    • Dimensions (Standard): Width: 20", Depth: 5.9", Height: 78"
    • Footprint with Base Plate: 6" x 24" (Wall-Hugger Unit 6" x 20" Base)
    • Covers: White or Black ABS plastic material
    • Weight: 68 lbs. (without RFID equipment)
    • Standard Reading Height: up to 96" (depending on equipment)
    • Maximum Antenna Positioning Height: 72"
    • Power: Standard 110 – 125 A/C 60HC
    • LAN Standard Ethernet Port, RJ45 Connector, 802.11 optional
    • Laser-Cut Bracketing: Drilled for mounting all major RFID Readers & Antennas
