BLAINE, WA, Azco Technologies Inc. has just released the Azco Comb. The dressing bundles of cable.

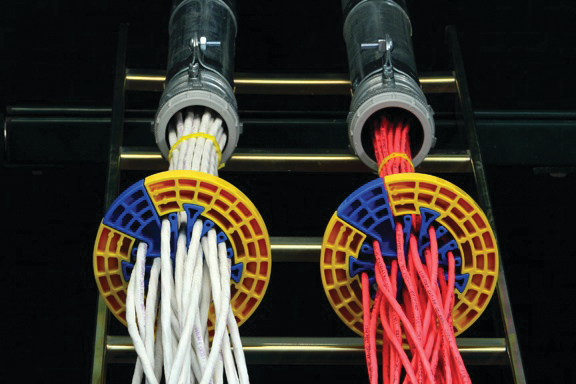

Individual cables are loaded into the open slots of Azco Comb blue inner hub at any point within the run without the need to find and thread cable ends through closed holes. The yellow outer collar is mated to the blue inner hub after the cables are loaded into the slots. This prevents cable dislodgement from the tool until the outer collar is removed. Removal of individual or groups of cables for termination, direction changes, or sub bundles is easily accomplished by sliding the yellow outer collar back a few inches from the blue inner hub and removing the selected cables through the large opening in the collar. The two piece tool can then be mated again to continue the combing process. Due to the unique design of the Azco Comb all cables are combed into an organized bundle, not just the outer cables.
The Azco Comb hub has been designed with 15 cable slots. Each slot will accommodate various types and quantities of category cable including most CAT 5, CAT 5E and CAT 6 cables. The Azco Comb can also be used to straighten, organize, bundle, and lash other types of cables such as plenum, co-axial, and control cable in sizes ¼” or smaller. The cable slots are chamfered to help prevent snagging of looser fitting cable jackets.
With the convenient built in concave finger pull the Azco Comb can be installed in any position allowing for smooth and comfortable pulling without worrying about orientation of the tool or interference with protruding handles.
The Azco Comb slides easily on the cable as it is manufactured by injection molding with Zytel nylon resin and has a naturally slick feel which provides for a low friction surface on the slots. The Zytel nylon resists penetration of oils, greases, solvents, and alkalis and makes the Cable Comb durable and long lasting.
The Azco Comb will benefit both contractors and technicians by saving time whenever the labor intensive task of organizing individual cables into professional appearing bundles is required.
