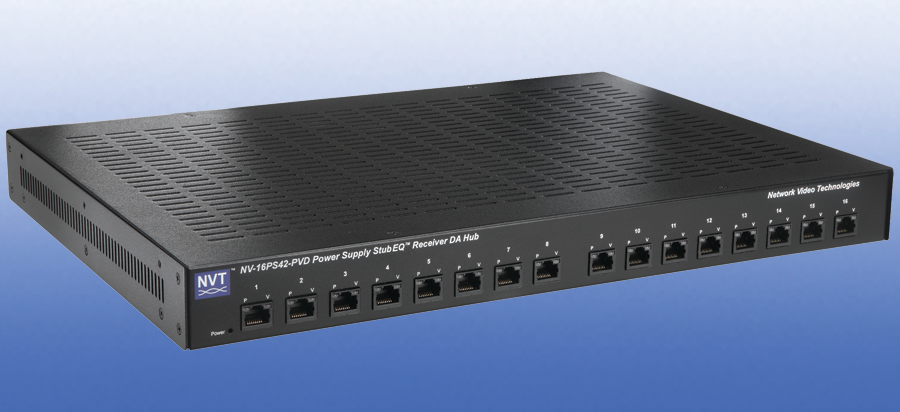

The 16-channel NV-16PS42-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, Power Supply StubEQ™ Active Receiver Hubs have individual floating 28VAC outputs that support at-distance camera loads up to 1 Amp per channel for cable runs up to 1,500ft. A built-in StubEQ™ video receiver hub ensures a zero loss video signal for connection into a DVR or IP encoder. Standard features include: automatic-reset fault protection, transient protection, ground loop free individually floating outputs and power and video diagnostics. All NVT products are UL and cUL listed, are compliant with CE, RoHS, WEEE, and come with NVT’s lifetime warranty. • Provides Class 2 SELV 28 VAC with up to 1 Amp/channel while receiving video transmission and delivering P/T/Z telemetry, all over a single 4-pair Cat5cable for each camera • Built-in distribution amplifier with 2 video outputs per channel • Full motion CCTV video at distances up to 1,500ft when used with any passive NVT transceiver • Adaptive StubEQ™ fully automatic 2-band equalization provides adjustment free equalization every time, no manual adjustments required • Frequency Response DC to 10 MHz • Automatic-reset fault protection; transient protection • Individually floating power outputs and differential video inputs ensure total ground-loop immunity • Diagnostic LEDs show load/no load, miswires, overload conditions, and video status • Limited lifetime warranty
